Hi YK, Could you help to describe the changes hdmi-edid.xml file here ? It could be better to have a history in FII's Mantis. Thank you ~ |
|
|
|
|
Hi Kerwin Below is sample hdmi-edid.xml about SKB's request. Based on the contents of this file, you can compare the contents generated by the FXN model. ( hdmi-edid_compare.PNG ) ============== <SKB's Sample (hdmi-edid.xml ) is below , > ===================================== <?xml version='1.0' encoding='UTF-8' standalone='yes' ?> <hdmi_edid hotplug="1" edid_version="1.3" model_name="ITE6604 " manufacturer_id="GSM" product_code="7666" serial_number="01010101" manufacture_date="1/2012"> <edid_hex> 00FFFFFFFFFFFF001E6D667601010101 0116010380462778EAD9B0A357499C25 11494B210800314045406140818081C0 0101D1C001011A3680A070381F403020 3500E8263200001A1B2150A051001E30 48883500BC862100001C000000FD0039 3C1F5412000A202020202020000000FC 00495445363630342020202020200193 020322F04D0603151213041405201F10 2122230907078301000067030C001000 B82D011D008051D01C2040803500BC88 2100001E8C0AD08A20E02D10103E9600 138E21000018023A801871382D40582C 450006442100001E011D8018711C1620 582C2500C48E2100009E4E1F00805100 1E3040803700BC88210000180000F4C0 </edid_hex> <supported_Video> <video resolution="720(1440)x480i" Hz="59.94Hz/60Hz" > => This string pattern is different from FXN ( please check hdmi-edid_example1.PNG ) <video resolution="720x480p" Hz="59.94Hz/60Hz" > <video resolution="720(1440)x576i" Hz="50Hz" > <video resolution="720x576p" Hz="50Hz" > <video resolution="1280x720p" Hz="50Hz" > <video resolution="1280x720p" Hz="59.94Hz/60Hz" > <video resolution="1920x1080i" Hz="50Hz" > <video resolution="1920x1080i" Hz="59.94Hz/60Hz" > <video resolution="1920x1080p" Hz="23.97Hz/24Hz" > <video resolution="1920x1080p" Hz="50Hz" > <video resolution="1920x1080p" Hz="59.94Hz/60Hz" > <video resolution="1920x1080p" Hz="25Hz" > <video resolution="1920x1080p" Hz="29.97Hz/30Hz" > </supported_Video> <supported_420Video> </supported_420Video> <supported_Audio> <audio codec="PCM" ch="2" SamplingRate="32^44.1^48" > ==> This string pattern is different from FXN ( please check hdmi-edid_example2.PNG ) , Note : please check codec string ( AC-3 (x) , AC3(o) ) </supported_Audio> <supported_Color> <color sampling="RGB 4:4:4" depth="0" /> <color sampling="YCrCb 4:4:4" depth="0" /> </supported_Color> </hdmi_edid> Thank you YK.Jung hdmi-edid_compare.PNG (104,719 bytes) |
|
|
Hi YK, 1. What do we have to use? LPCM or PCM In hdmi-edid_compare.PNG, it still uses PCM. 2. In hdmi-edid_example2.PNG , there are 2 DTS. (7:DTS, 13: DTS) Please help to correct it. 3. <audio codec="Dobly_Digital+/ATMOS" ch="8" SamplingRate="44.1^48" /> What would you like to show in this case? "DD+/ATMOS" or "DD+" |
|
|
Hi Bcan 1. please use LPCM ( that is , change PCM to LPCM ) 2. 13 : DST ( Typing error of skb manager ) 3. I will let you know after checking with SKB mannager. Thank you YK.Jung |
|
|

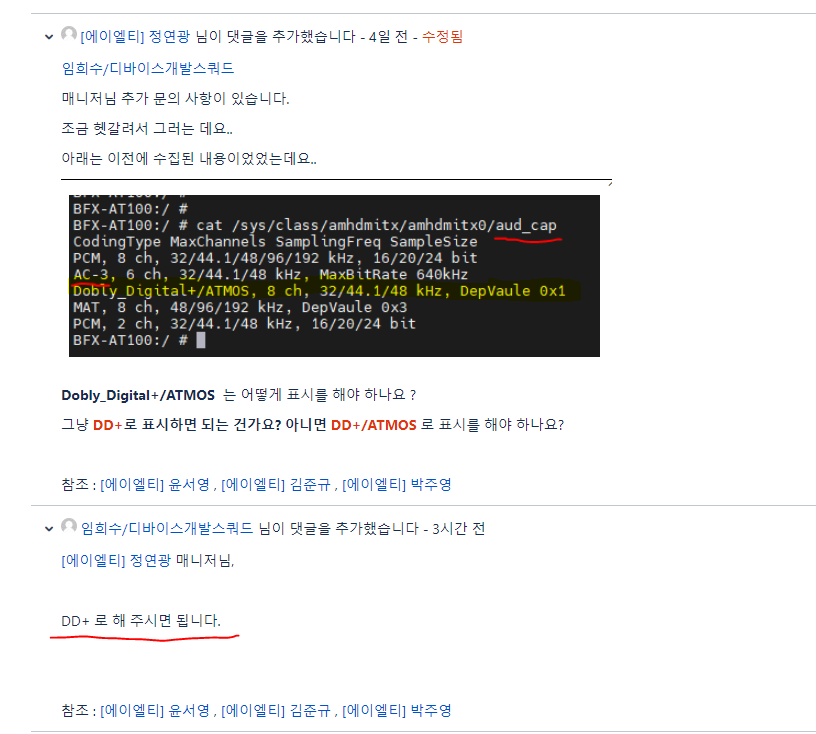

Hi Bcan In the following cases: 3. <audio codec="Dobly_Digital+/ATMOS" ch="8" SamplingRate="44.1^48" /> What would you like to show in this case? "DD+/ATMOS" or "DD+" ==> please use DD+ Thank you YK.Jung screen_capture.png (91,899 bytes) |
|
|

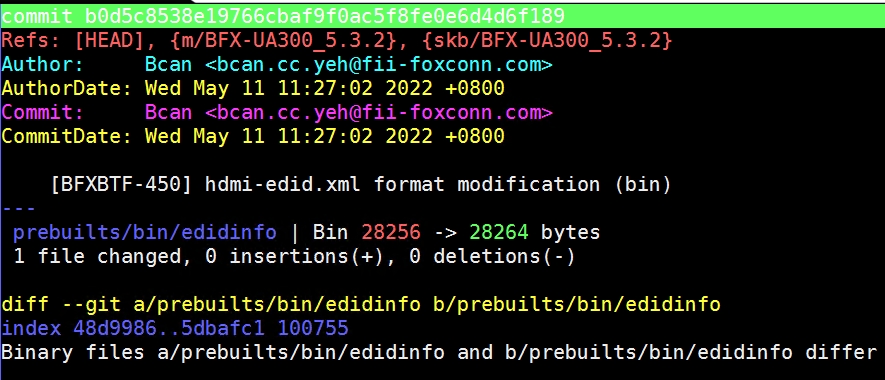

Hi YK, hdmi-edid.xml format modification of SWAN is also completed. Please check it. 1652317799726.jpg (234,120 bytes) |
|
|
Hi, Bcan, I have checked that hdmi-edid.xml was changed correctly with daily build image. And, could you please push this commit to BFX-UA300_5.3.4 branch? Thank you. |
|
|
Hi Sangmin, This commit is pushed to BFX-UA300_5.3.4 branch. |
|
|
issue fixed |
|
|
close |
- yk.jung ( (ALTech) Younkwang Jung ) developer
